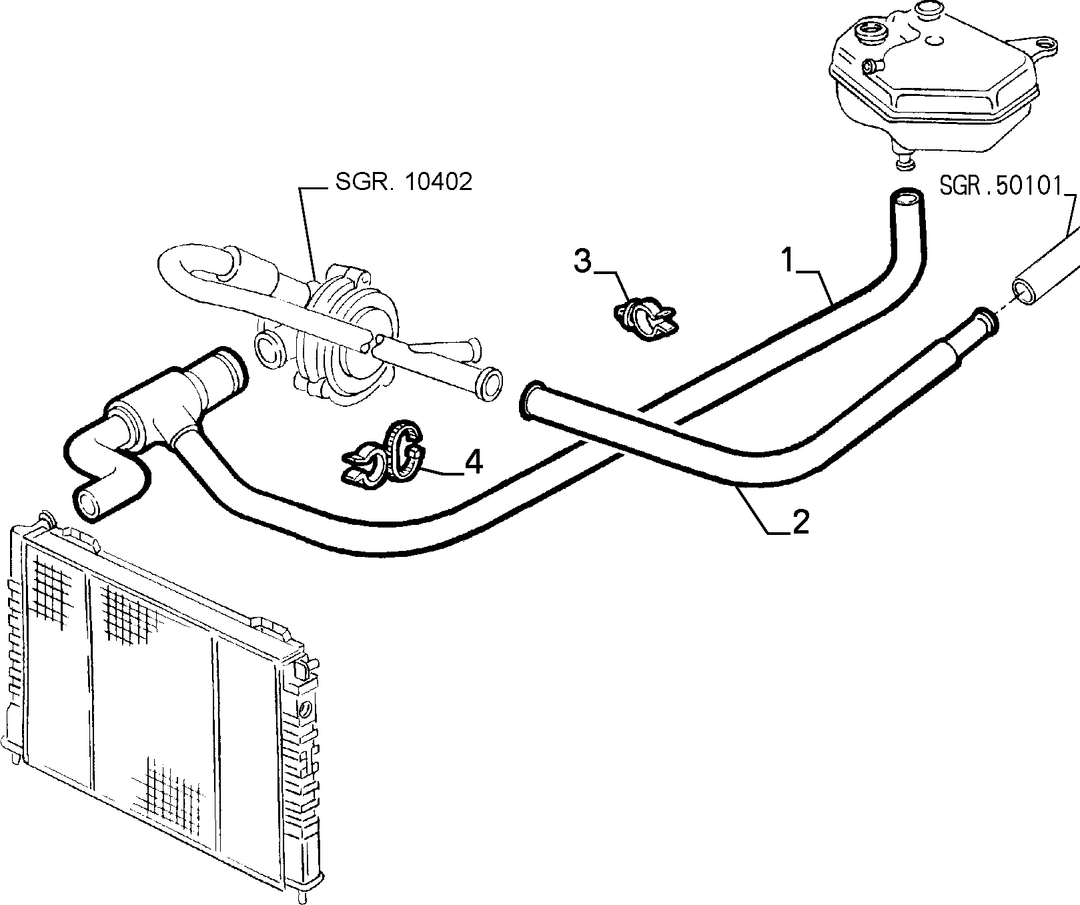

RADIATOR AND PIPING 3
Subgroup No10401/00 page 3 Specification: M1
RADIATOR AND PIPING

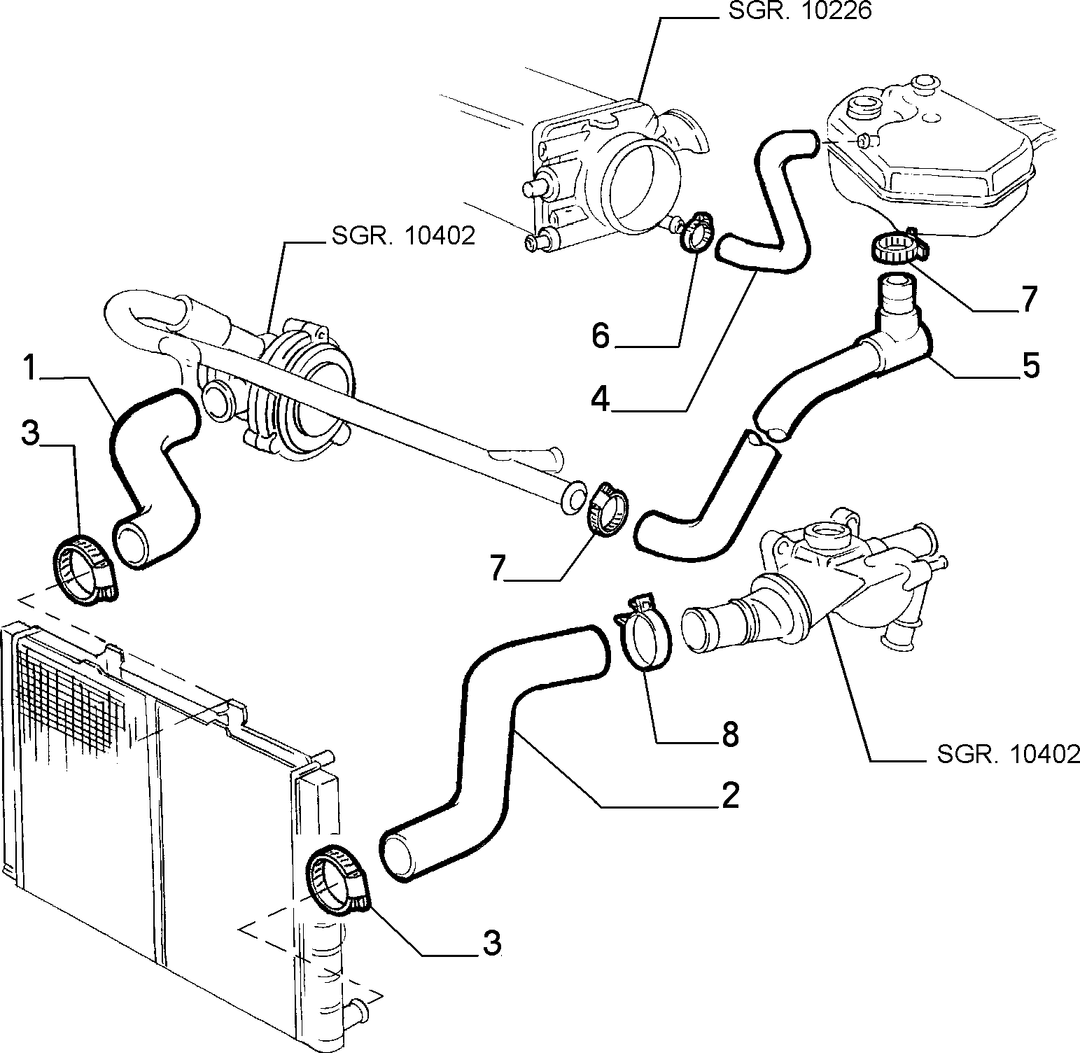

RADIATOR AND PIPING 2
Subgroup No10401/00 page 2 Specification: M1

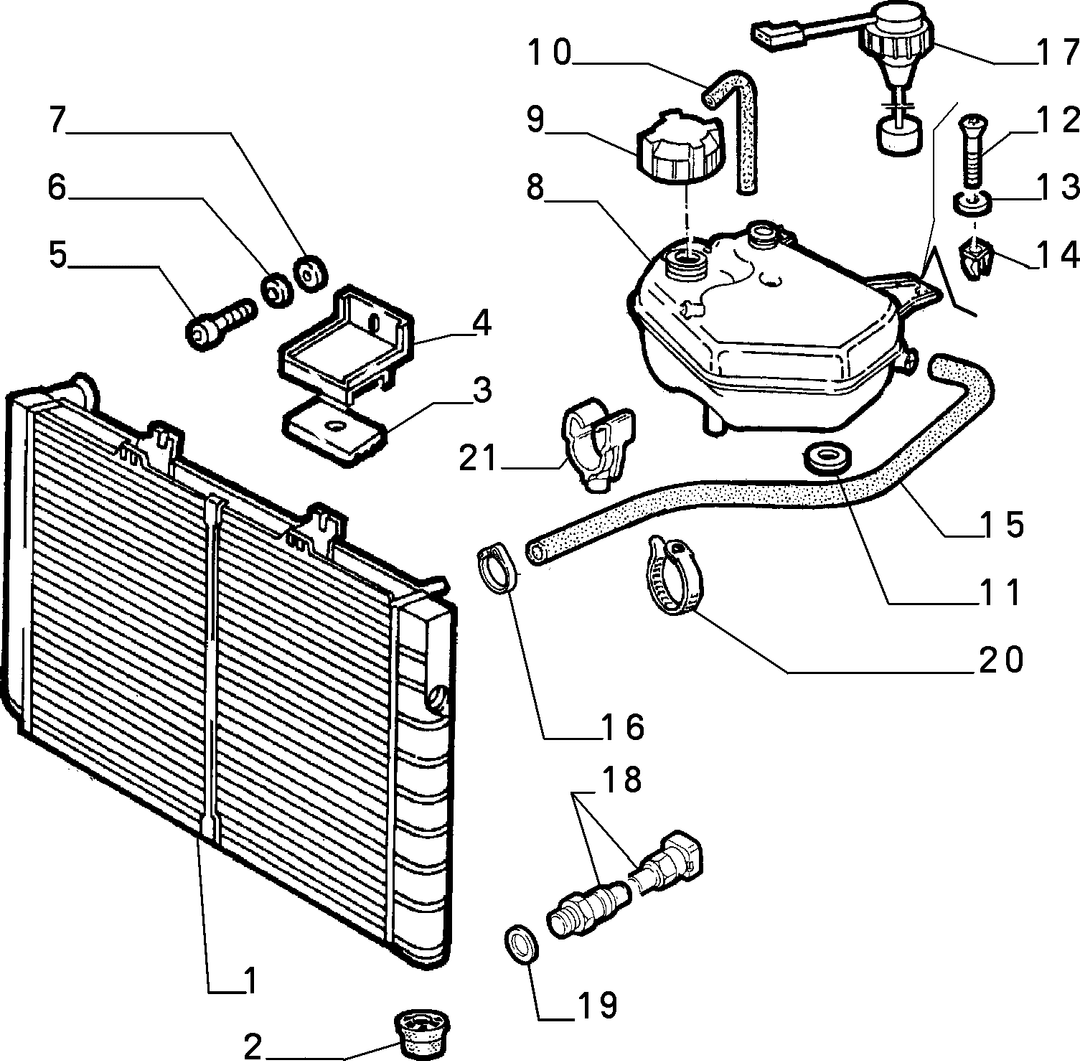

RADIATOR AND PIPING 1
Subgroup No10401/00 page 1 Specification: M1

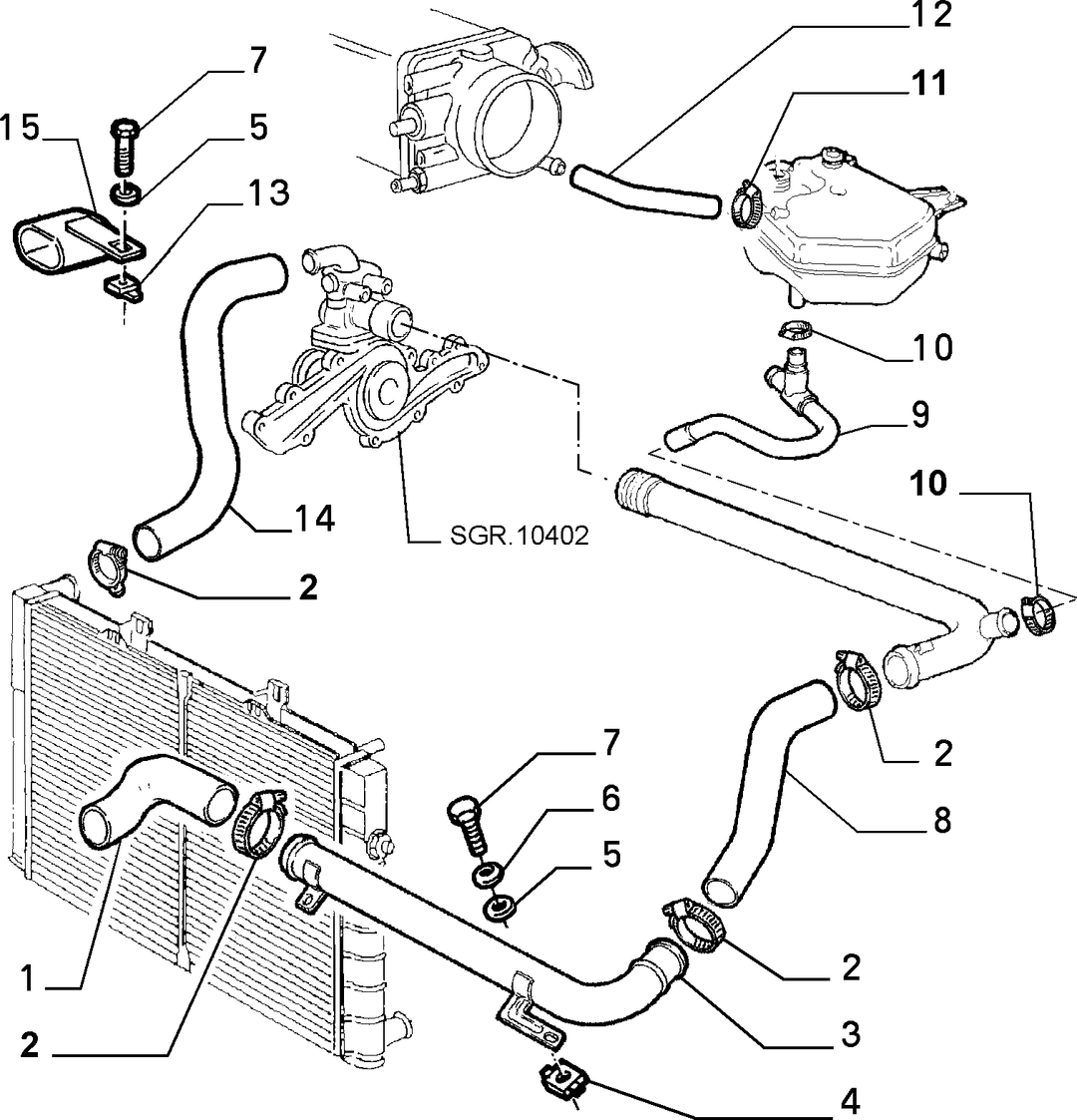

RADIATOR AND PIPING 5
Subgroup No10401/01 page 2 Specification: M2,M3,M4,M5,M6,M7

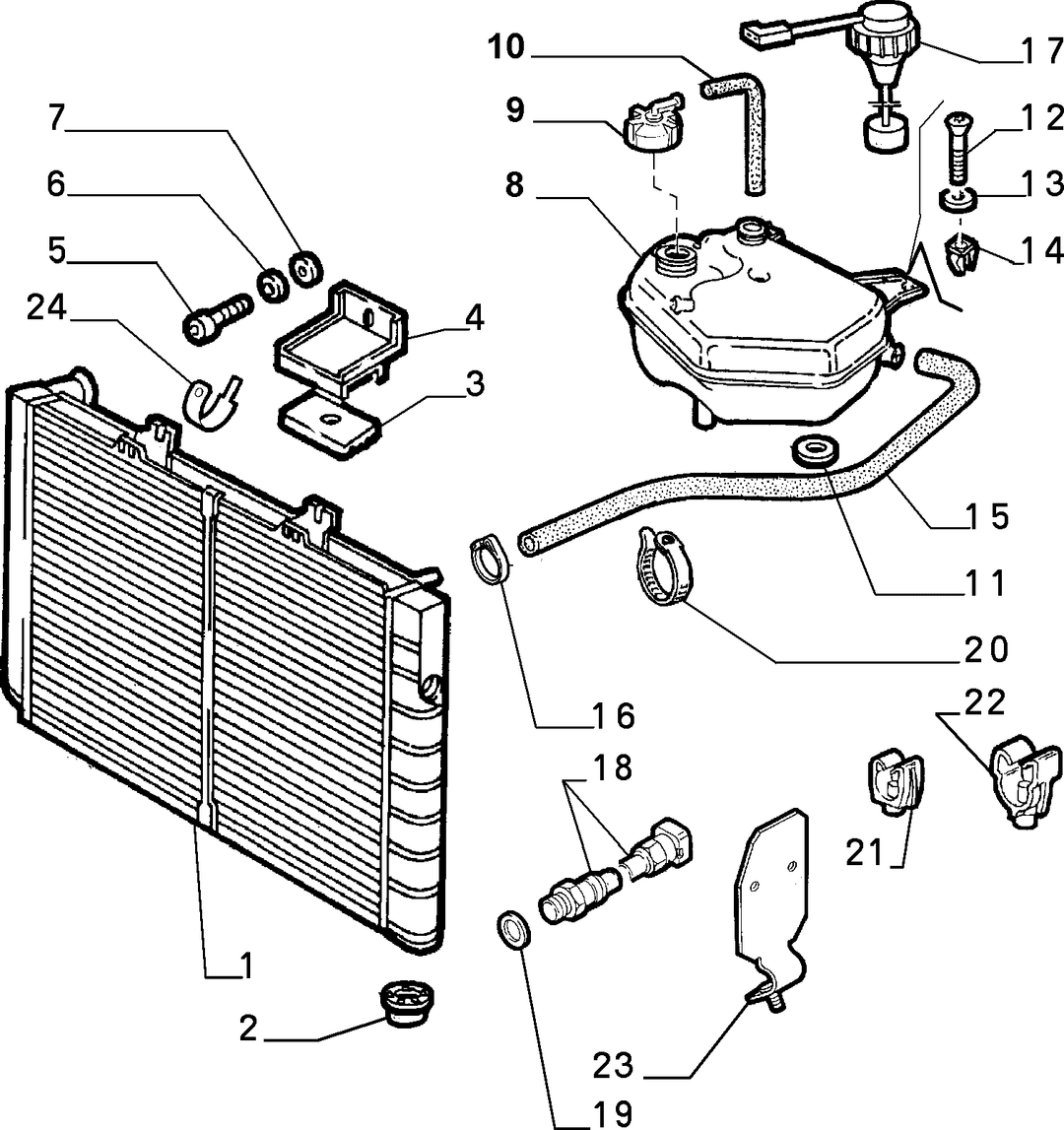

RADIATOR AND PIPING 4
Subgroup No10401/01 page 1 Specification: M2,M3,M4,M5,M6,M7

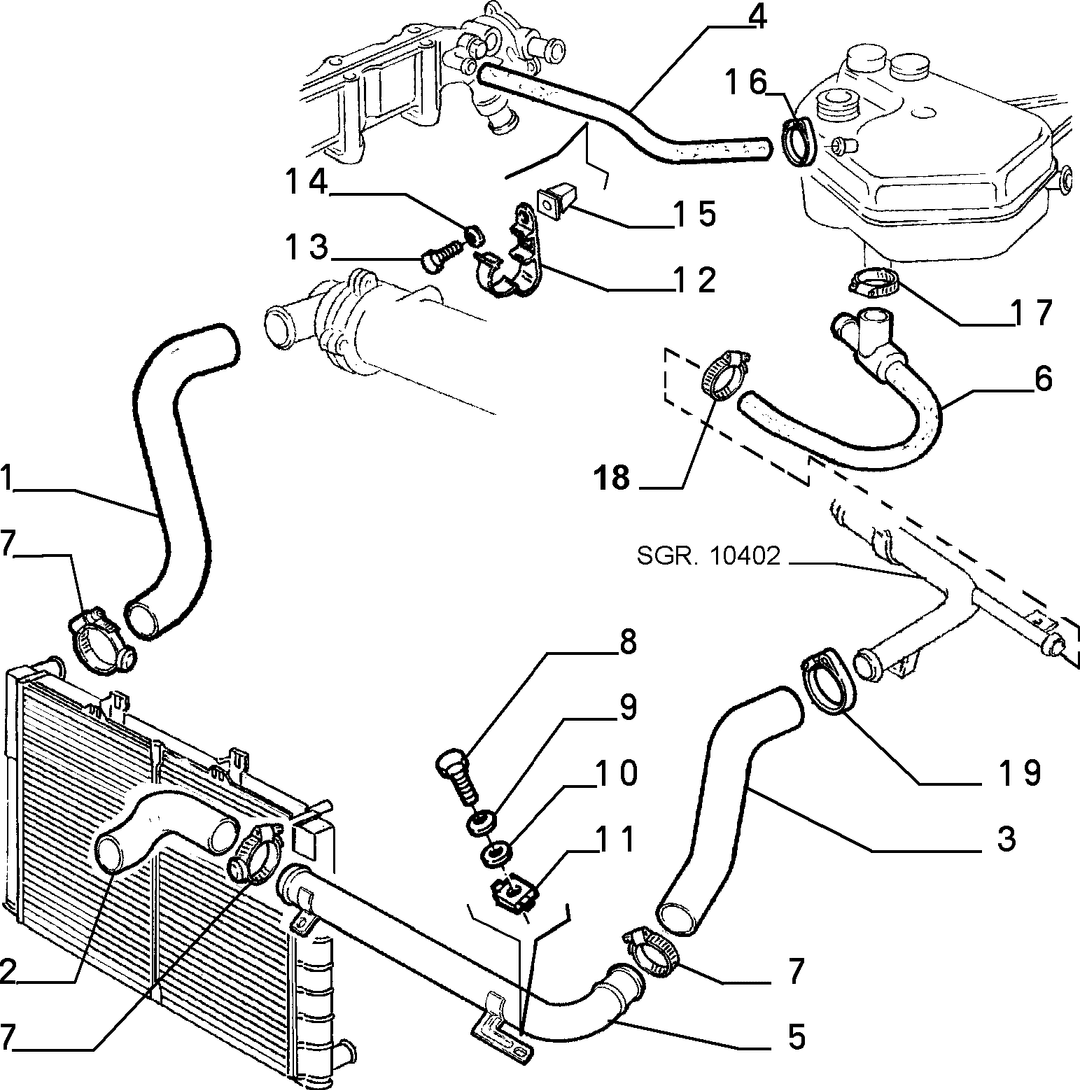

RADIATOR AND PIPING 7
Subgroup No10401/02 page 2 Specification: M8,M9

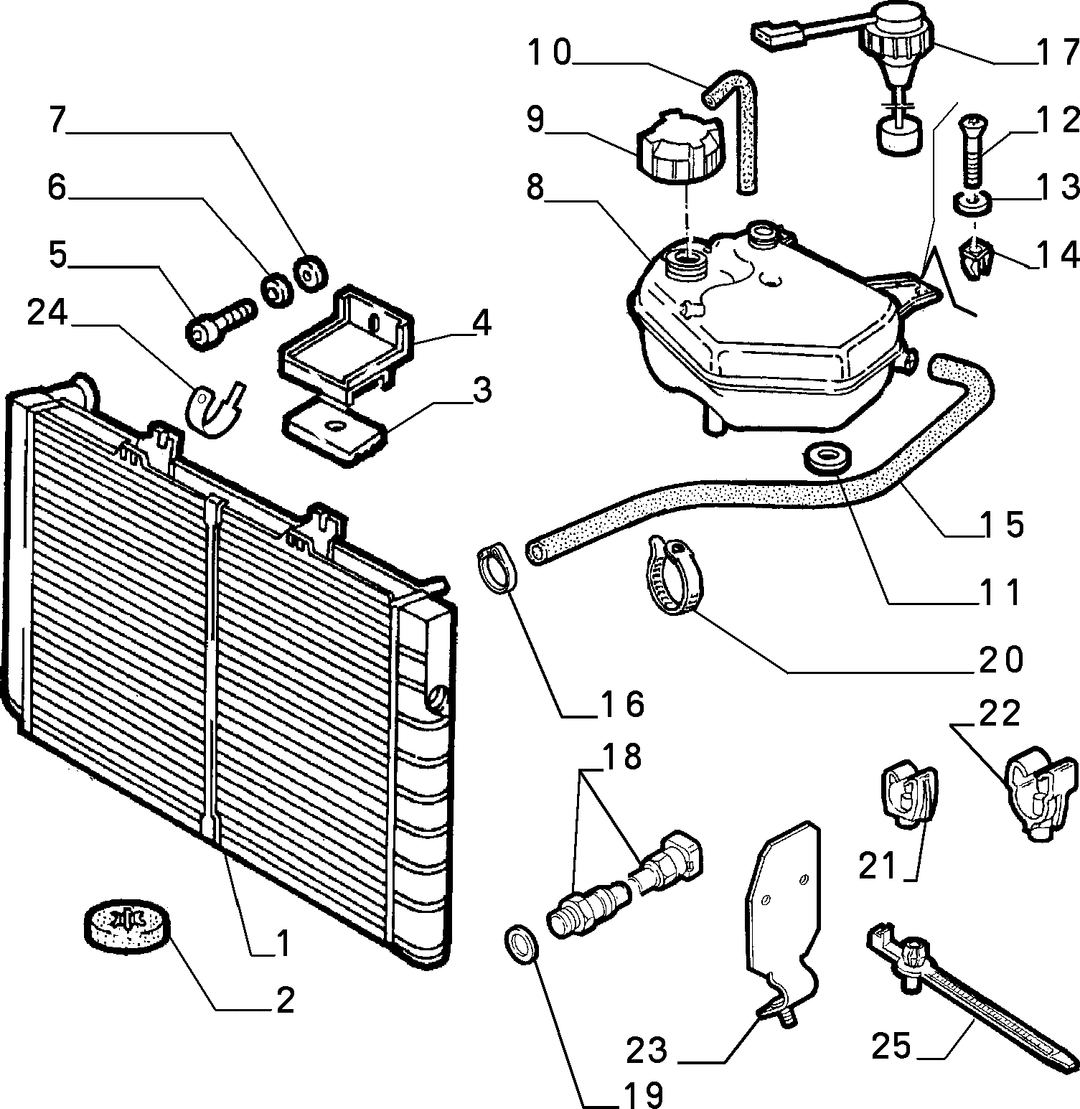

RADIATOR AND PIPING 6
Subgroup No10401/02 page 1 Specification: M8,M9
