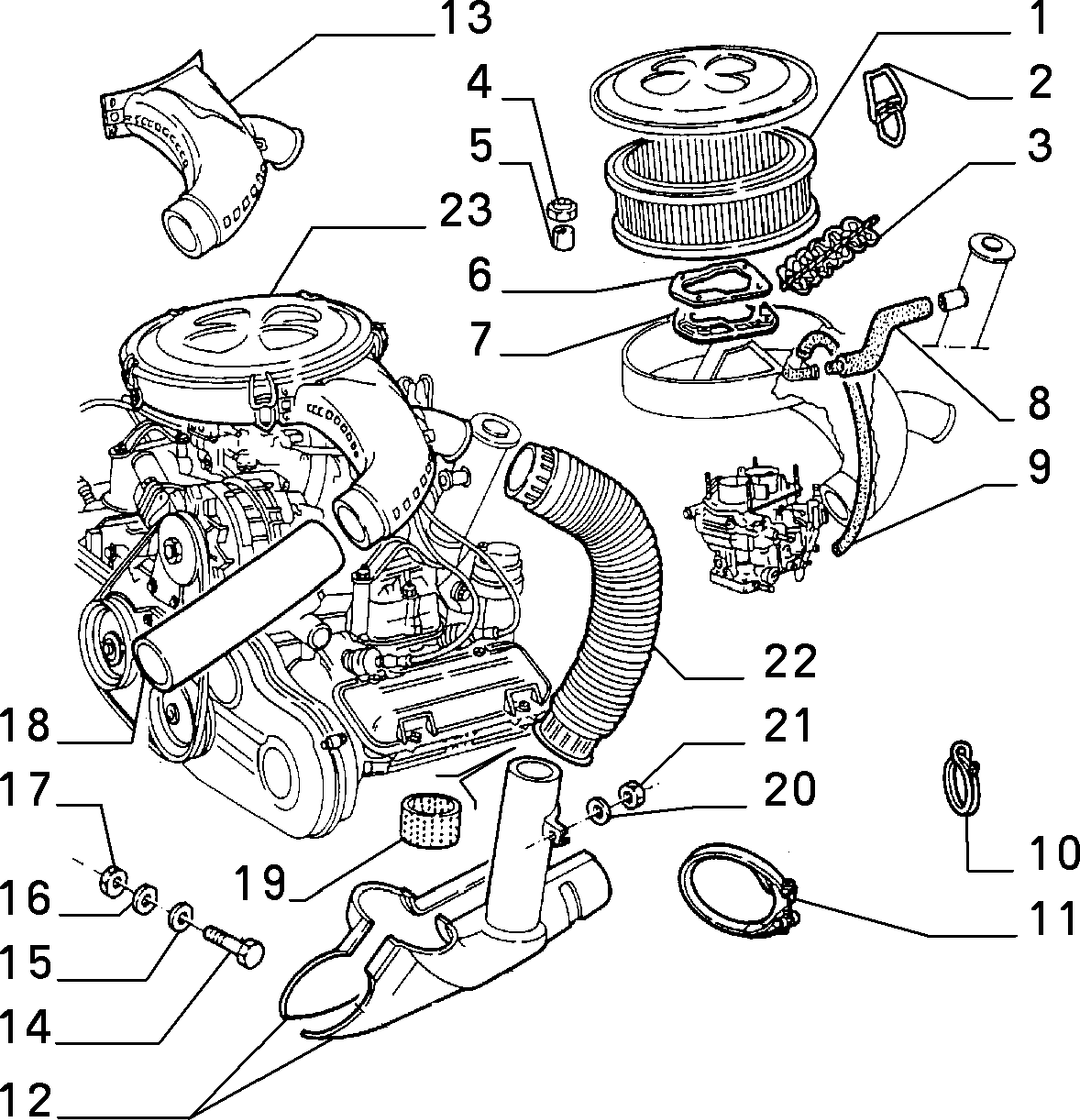

CARBURATOR AND AIR CLEANER 2
Subgroup No10204/00 page 2 Specification: M1,M2
CARBURATOR AND AIR CLEANER

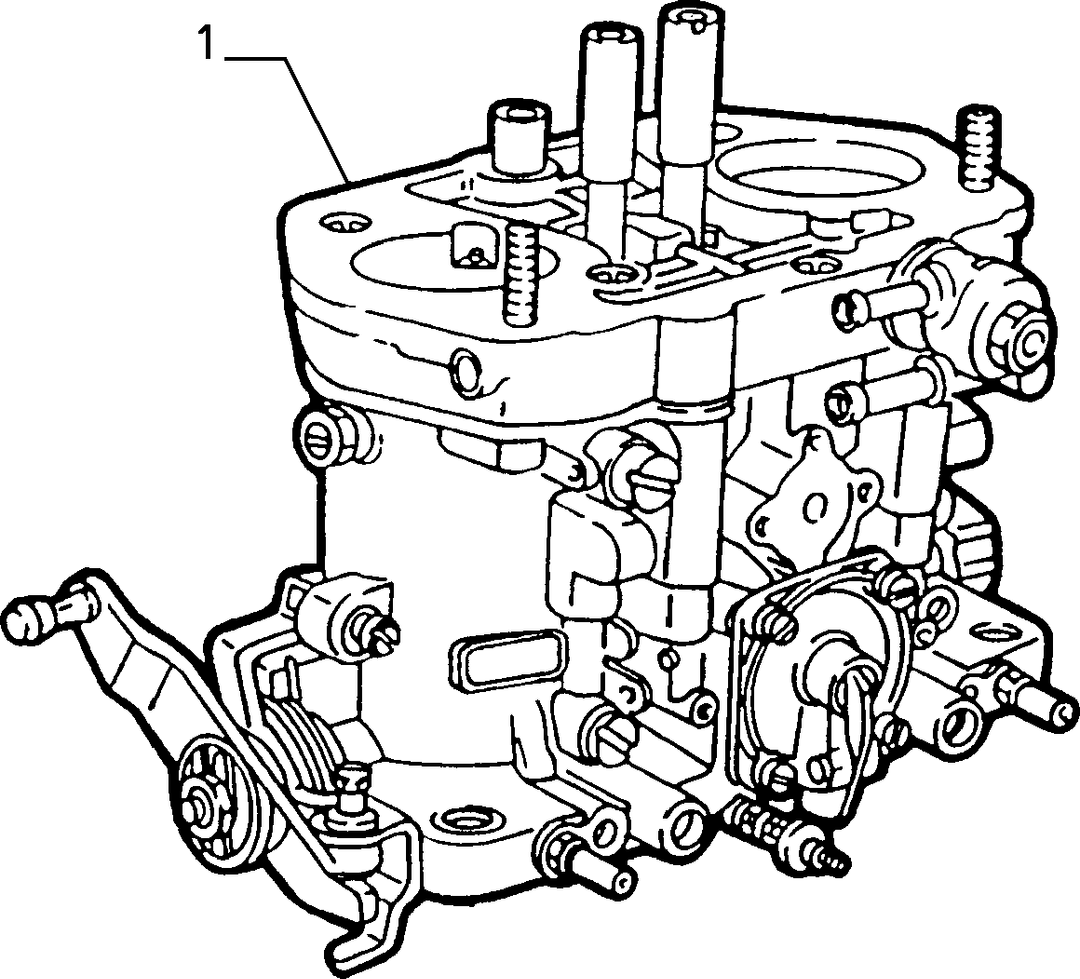

CARBURATOR AND AIR CLEANER 1
Subgroup No10204/00 page 1 Specification: M1,M2

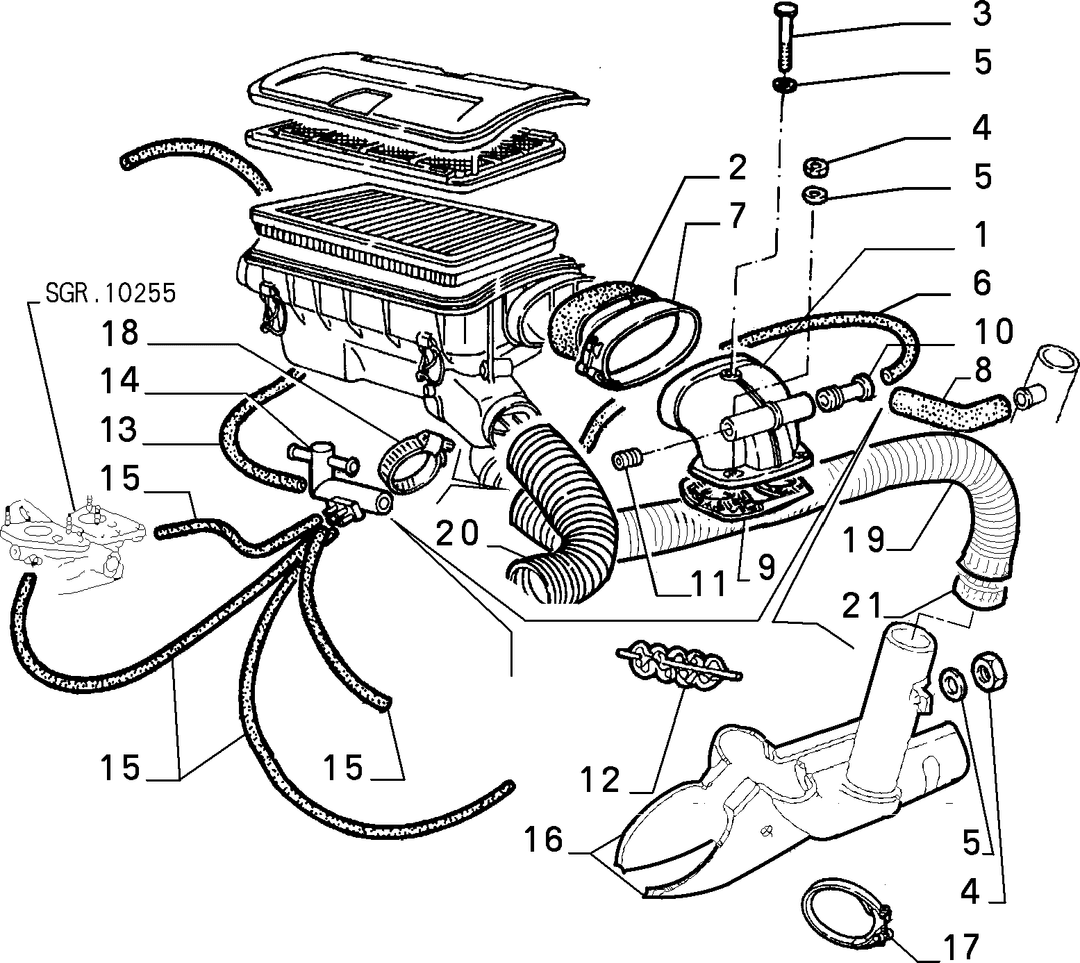

CARBURATOR AND AIR CLEANER 5
Subgroup No10204/01 page 3 Specification: M3,M5

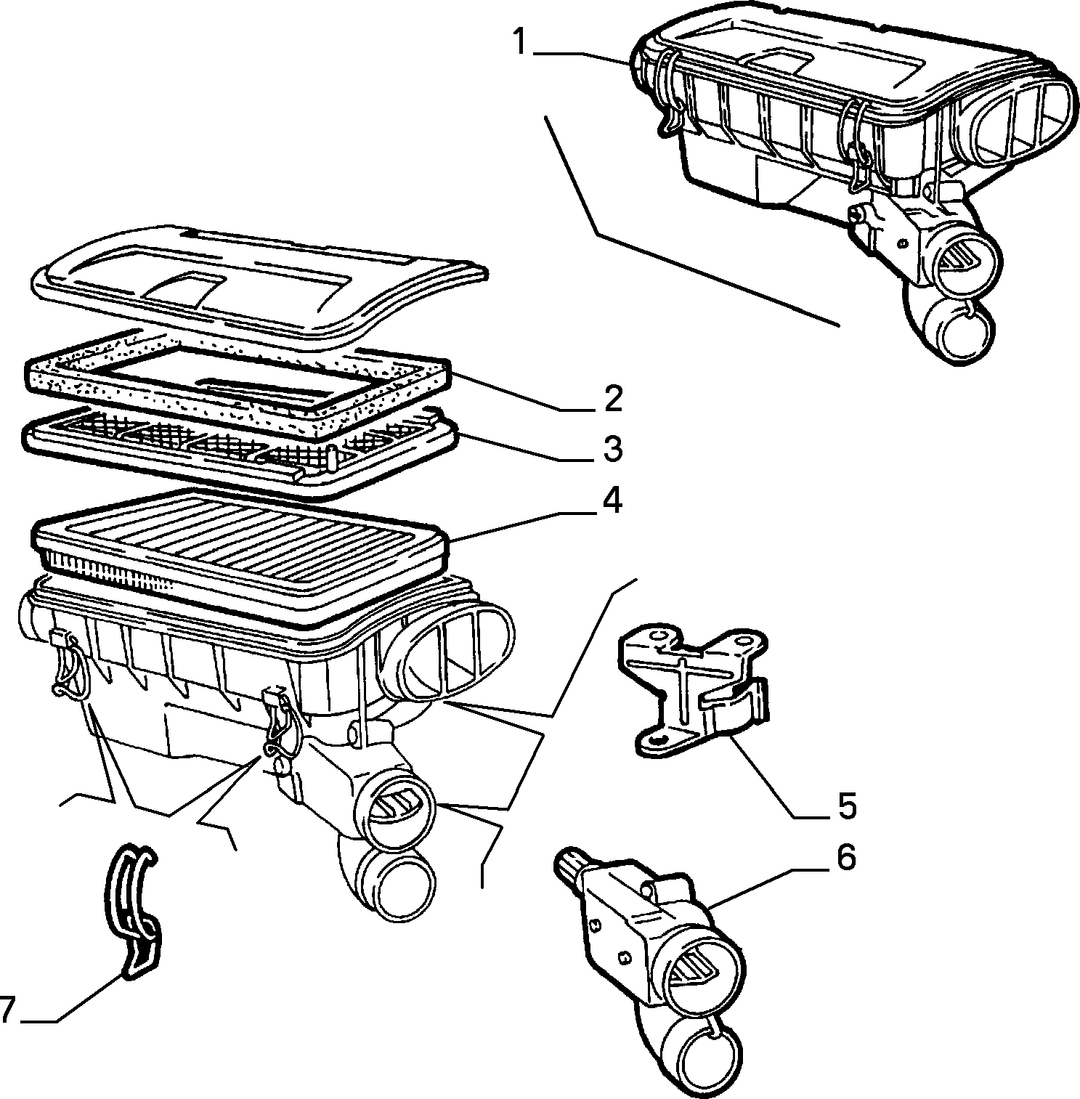

CARBURATOR AND AIR CLEANER 4
Subgroup No10204/01 page 2 Specification: M3,M5
CARBURATOR AND AIR CLEANER 3
Subgroup No10204/01 page 1 Specification: M3,M5

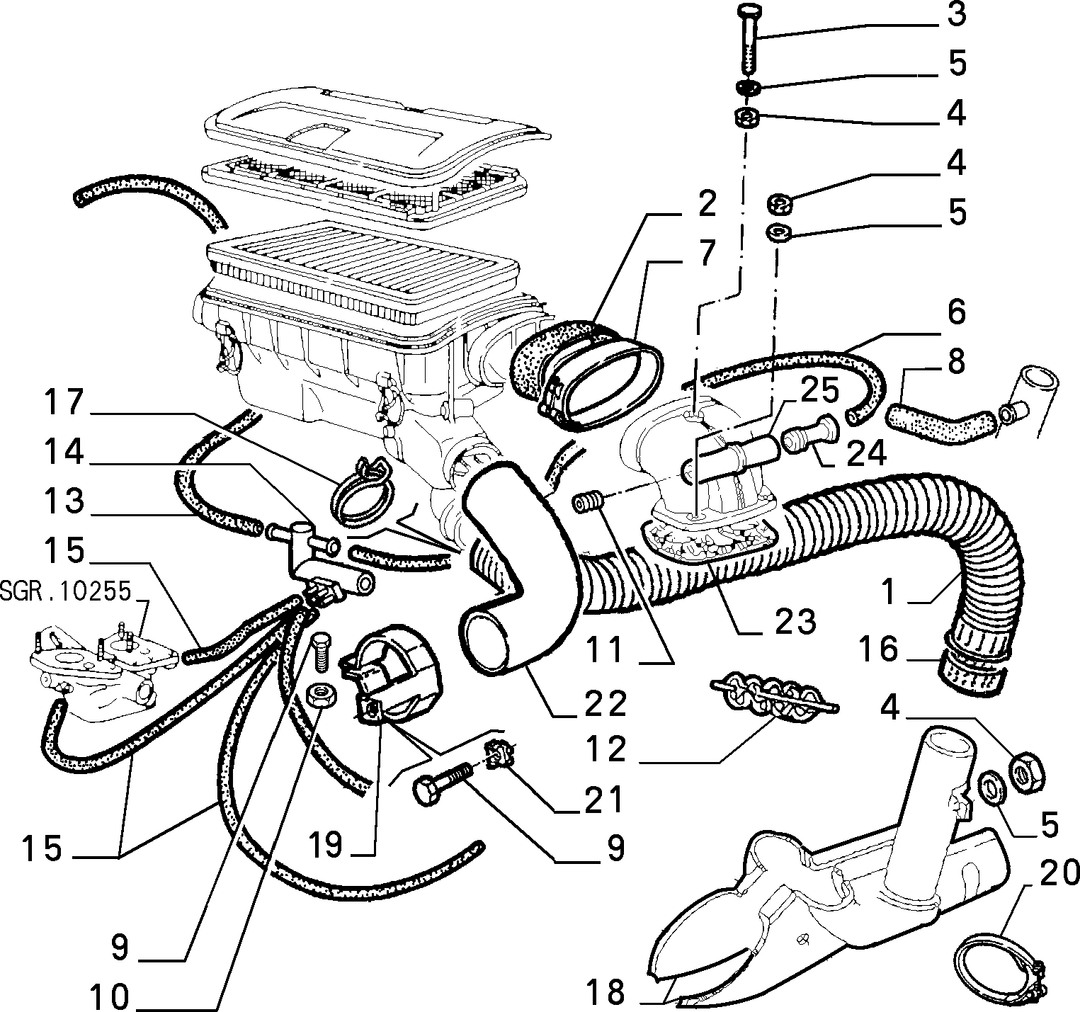

CARBURATOR AND AIR CLEANER 8
Subgroup No10204/02 page 3 Specification: M4,M6,M7
CARBURATOR AND AIR CLEANER 7
Subgroup No10204/02 page 2 Specification: M4,M6,M7
CARBURATOR AND AIR CLEANER 6
Subgroup No10204/02 page 1 Specification: M4,M6,M7
